Importing Data and Annotations

You can programmatically upload your data to the RedBrick AI platform and also upload pre-labels with the data so that your team can correct the annotations on the platform.

Creating data points without labels

You can use the create_datapoints method to upload data to the RedBrick AI platform.
Perform standard SDK set up to create an RBProject object.
import redbrick
# Standard Setup
api_key = "<TODO>"
org_id = "<TODO>"
project_id = "<TODO>"
project = redbrick.get_project(
org_id=org_id,
project_id=project_id,
api_key=api_key
)
Construct your data points object and upload to RedBrick.

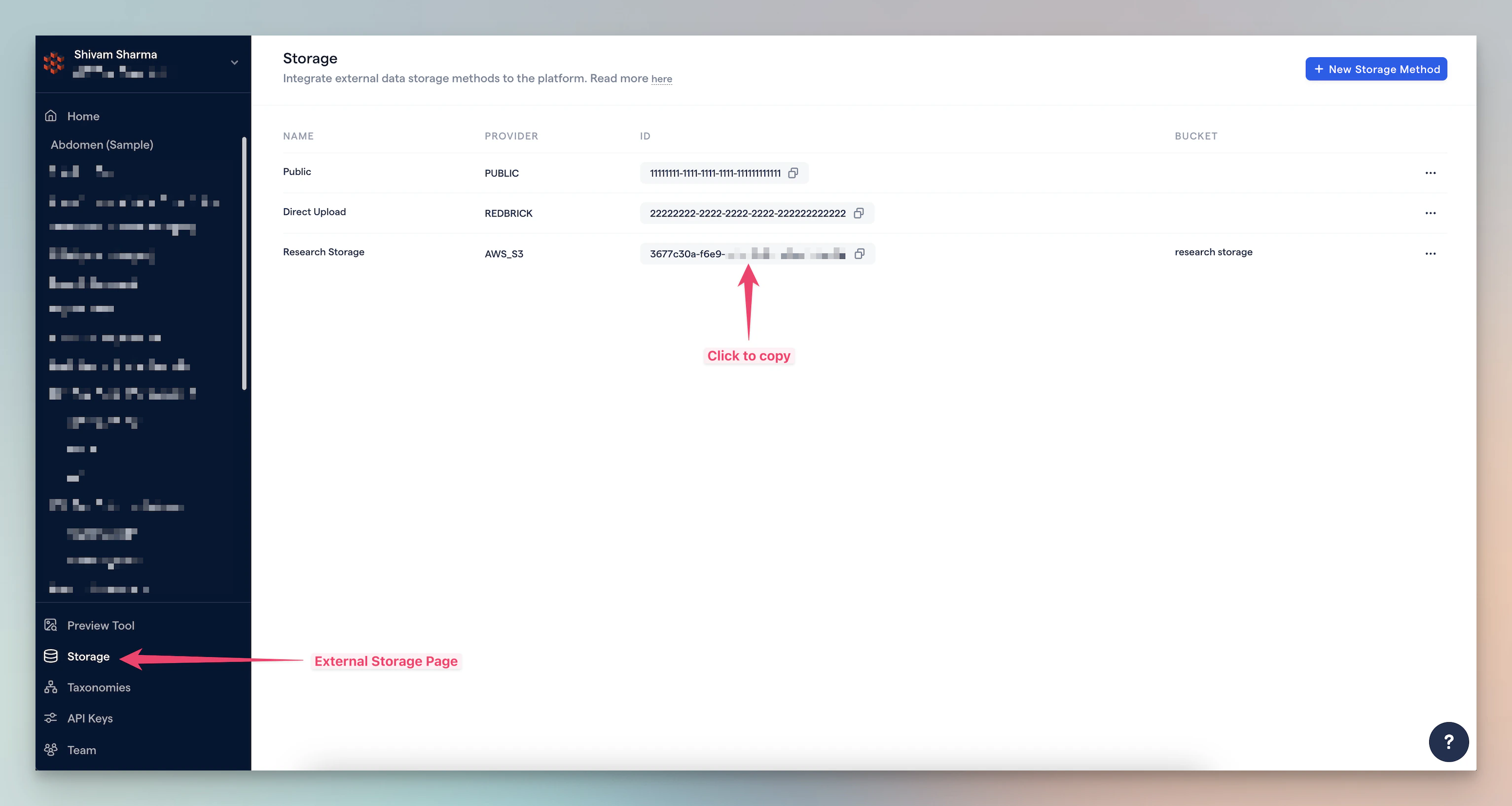

# Your storage id can be found on the Storage Methods tab (left sidebar) on RedBrick AI
# redbrick.StorageMethod.REDBRICK is for locally stored data.
storage_id = redbrick.StorageMethod.REDBRICK
datapoints = [
{
# Must be unique for each datapoint.
"name": "my first upload",
# Must be a valid path to data stored in the storage method
# defined above.
"items": [
"path/to/local/file.png"
]
}
]
project.upload.create_datapoints(storage_id, datapoints)

Creating data points with vector labels

You can also upload data with pre-labels using the create_datapoints method.
# Your storage id can be found on the Storage Methods tab (left sidebar) on RedBrick AI
# redbrick.StorageMethod.PUBLIC is for publically stored data.
storage_id = redbrick.StorageMethod.PUBLIC
datapoints = [
{
# Must be unique for each datapoint.
"name": "my first upload",
# Must be a valid path to data stored in the storage method
# defined above.
"items": [
"http://datasets.redbrickai.com/car-vids/car-1/frame20.png"
]
# The labels field needs to be of type LabelObject
"labels": [
{
# category-name must be a valid name part of your
# project taxonomy.
"category": [["object", "category-name"]],
"bbox2d": {
"xnorm": 0.1,
"ynorm": 0.1,
"wnorm": 0.2,
"hnorm": 0.2
}
}
]
}
]
project.upload.create_datapoints(storage_id, datapoints)

Creating data points with segmentation labels

To upload data with masks labels, you can use the create_datapoint_from_masks method. You have to first prepare a directory containing your masks in the format defined in the reference documentation.
# Directory containing the mask data, in the correct format.
dir = "<TODO>"
# Load map information
with open(os.path.join(dir, "class_map.json"), "r") as file:
class_map = json.load(file)
with open(os.path.join(dir, "datapoint_map.json"), "r") as file:
datapoint_map = json.load(file)
# Iterate over files, and upload data with masks.
for file in datapoint_map:
mask_im = Image.open(os.path.join(dir, file))
mask = np.array(mask_im)[:, :, 0:3] # Ignore Alpha channel
mask = mask.astype(np.uint8)
# Because we are using redbrick.StorageMethod.REDBRICK,
# the image_path will need to be path to a locally stored image.
image_path = datapoint_map[file]
project.upload.create_datapoint_from_masks(
redbrick.StorageMethod.REDBRICK, mask, class_map, image_path
)
